HYBDX投光灯
产品介绍
功率范围

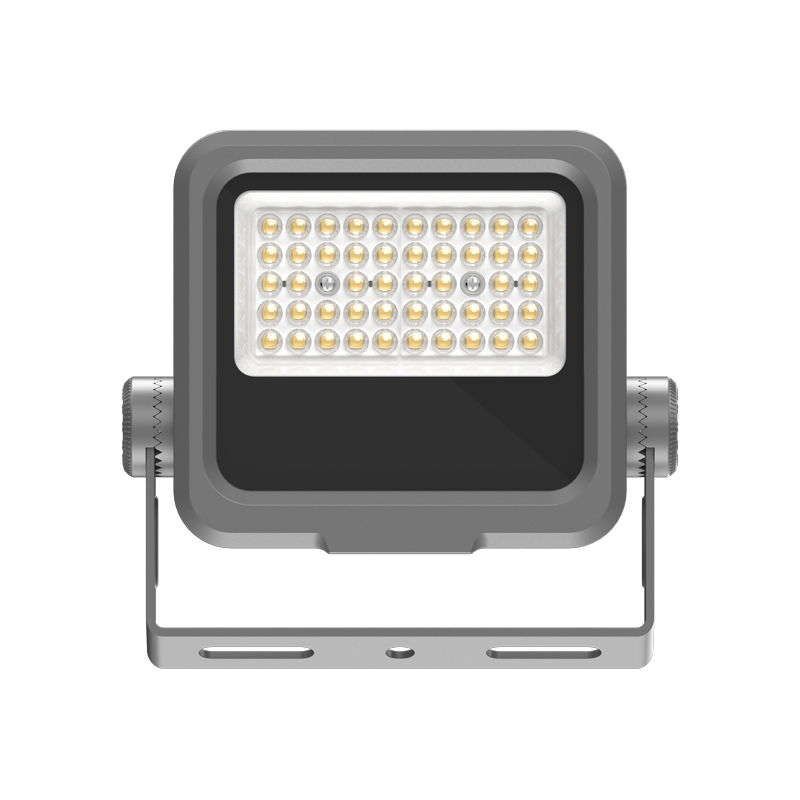

RJ-HYBDX-30W-2

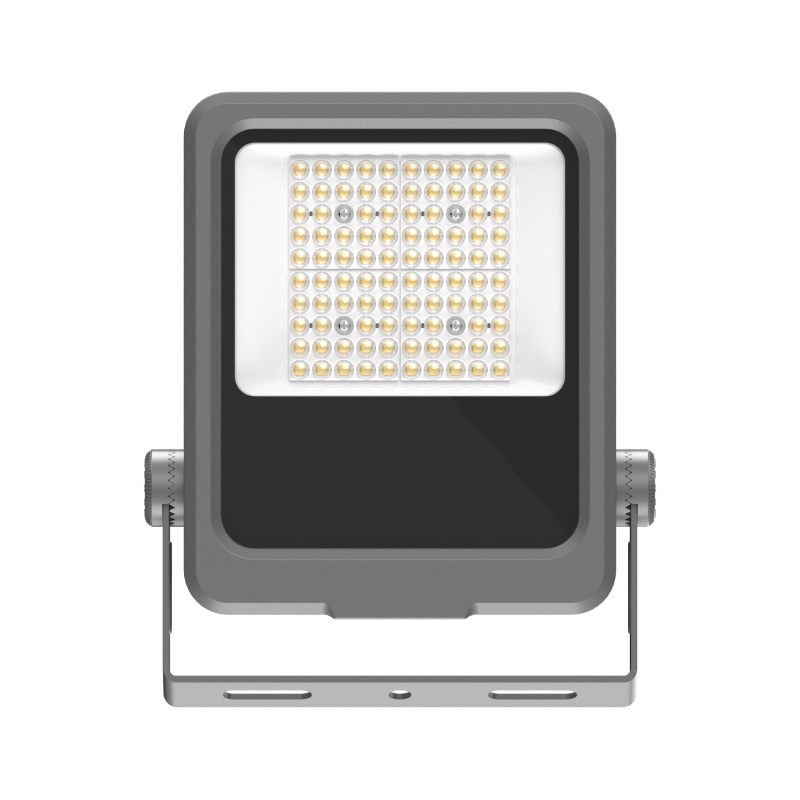

HYBDX-50W-4

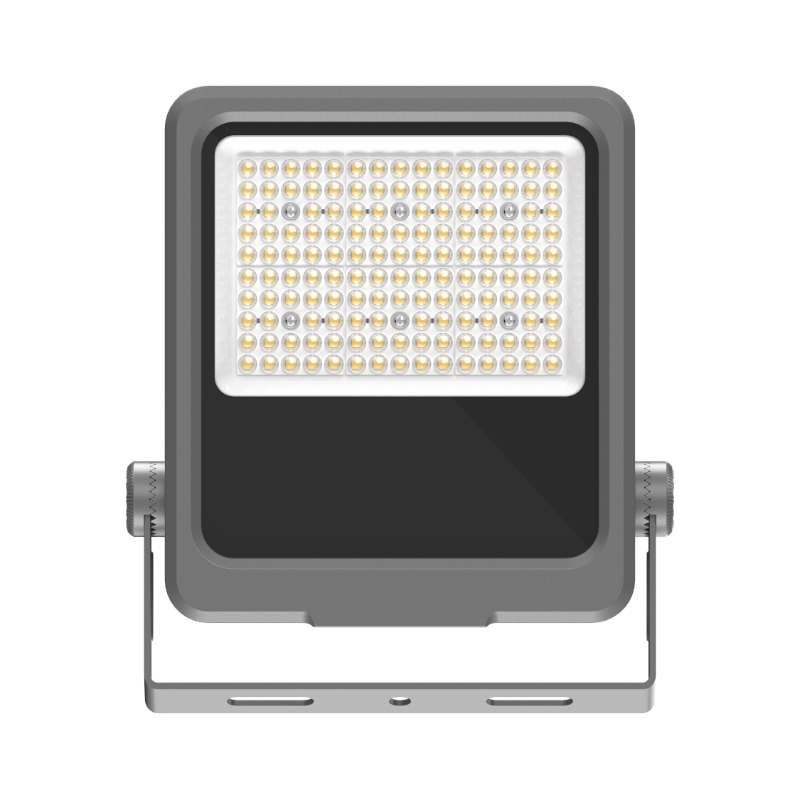

HYBDX-100W-6

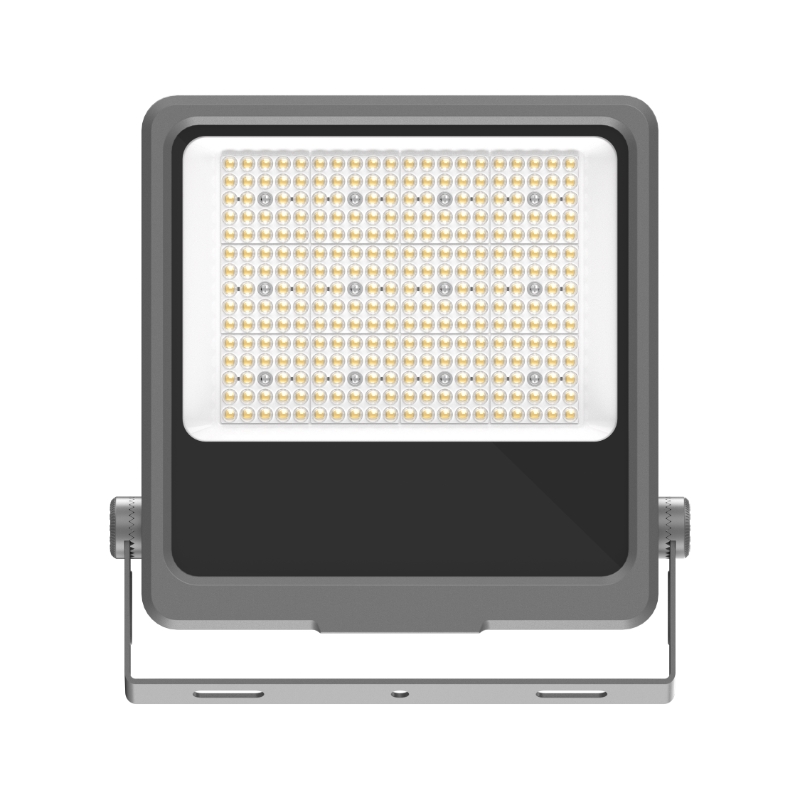

HYBDX-150W-12

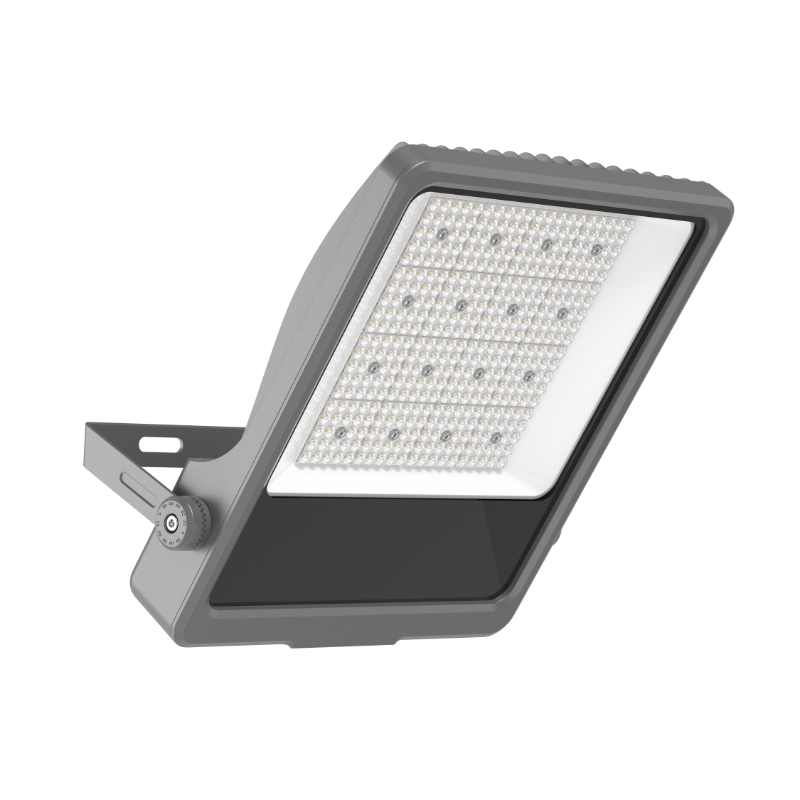

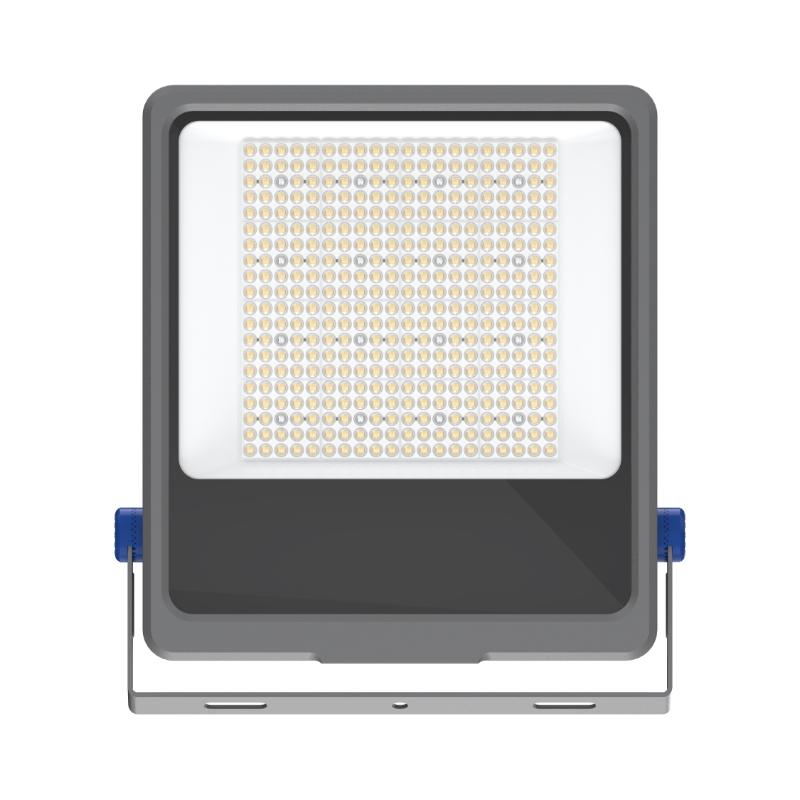

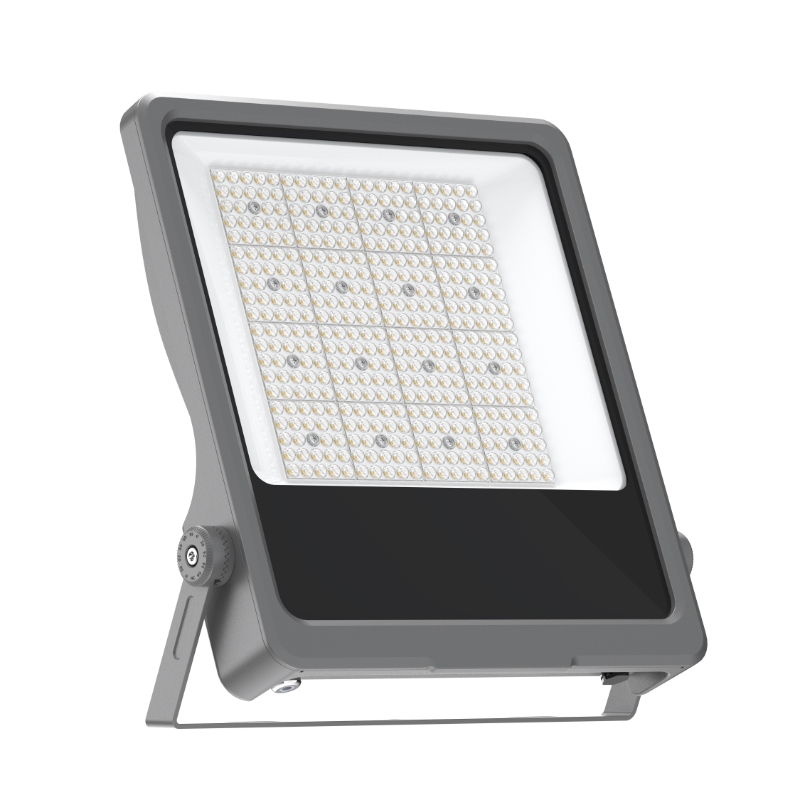

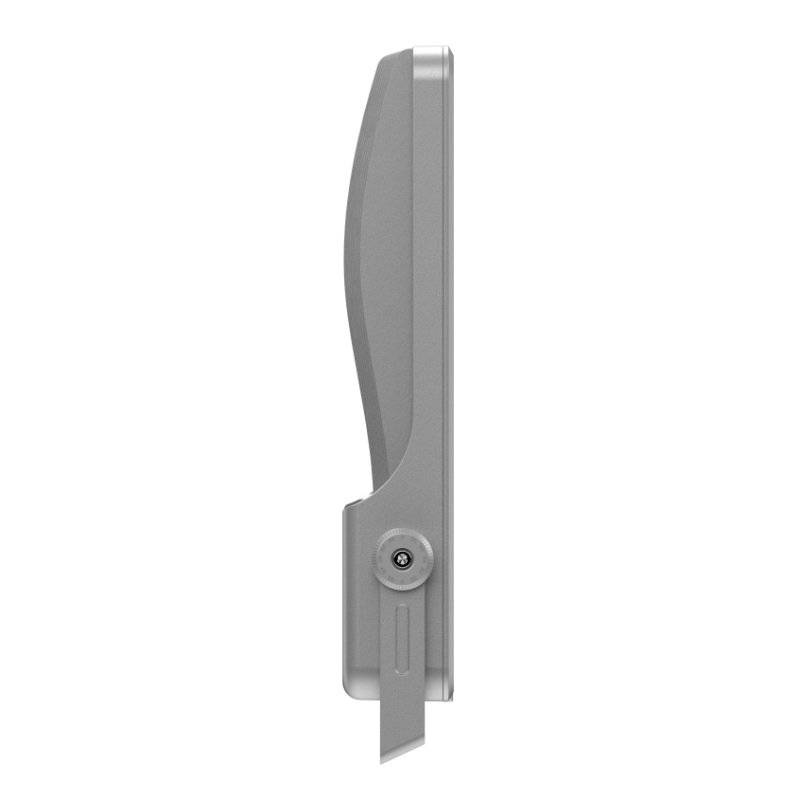

HYBDX-200W-16
HYBDX-250W-20
HYBDX-300W-20
HYBDX-400W-28
HYBDX-500W-45
HYBDX-600W-45
产品中心
经典设计出发，提供适合的产品
功率范围
RJ-HYBDX-30W-2
HYBDX-50W-4
HYBDX-100W-6
HYBDX-150W-12
HYBDX-200W-16
HYBDX-250W-20
HYBDX-300W-20
HYBDX-400W-28
HYBDX-500W-45
HYBDX-600W-45
技术参数表
No. | 参数名称Nameofparameter | 规格型号及参数表Specification model and technical data | |||||||||
1 | 型号Type | BDX-30W | BDX-50W | BDX-100W | BDX-150W | BDX-200W | BDX-250W | BDX-300W | BDX-400W | BDX-500W | BDX-600W |
2 | 功率Rated power | 30W | 50W | 100W | 150W | 200W | 250W | 300W | 400W | 500W | 600W |
3 | 电压范围Allowable operating voltage range | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V |
4 | 功率因数 Power factorPF | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 |
5 | 总谐波 Total harmonic distortion | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% |
6 | 耐压Electric strength | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V |
7 | 角度Distribution Angle | 30°/60°/90° | 30°/60°/90° | 30°/60°/90° | 30°/60°/90° | 30°/60°/90° | 30°/60°/90° | 30°/60°/90° | 30°/60°/90° | 30°/60°/90° | 30°/60°/90° |
8 | 显色指数CRI(color rendering index)Ra | ≥/70 | ≥/70 | ≥/70 | ≥/70 | ≥/70 | ≥/70 | ≥/70 | ≥/70 | ≥/70 | ≥/70 |
9 | 色温Color temperatureCCT | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K |
10 | 光效 Whole light effect(lm) | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 |
11 | 环境温度Operating ambient temperature | -20~45° C | -20~45° C | -20~45° C | -20~45° C | -20~45° C | -20~45° C | -20~45° C | -20~45° C | -20~45° C | -20~45° C |
12 | 寿命Life | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs |
13 | 防雷保护 Lightning and surge protection rating | ≥6K | ≥6K | ≥6K | ≥6KV | ≥6KV | ≥6KV | ≥6KV | ≥6KV | ≥6KV | ≥6KV |
14 | 防护等级IP Grade | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 |
