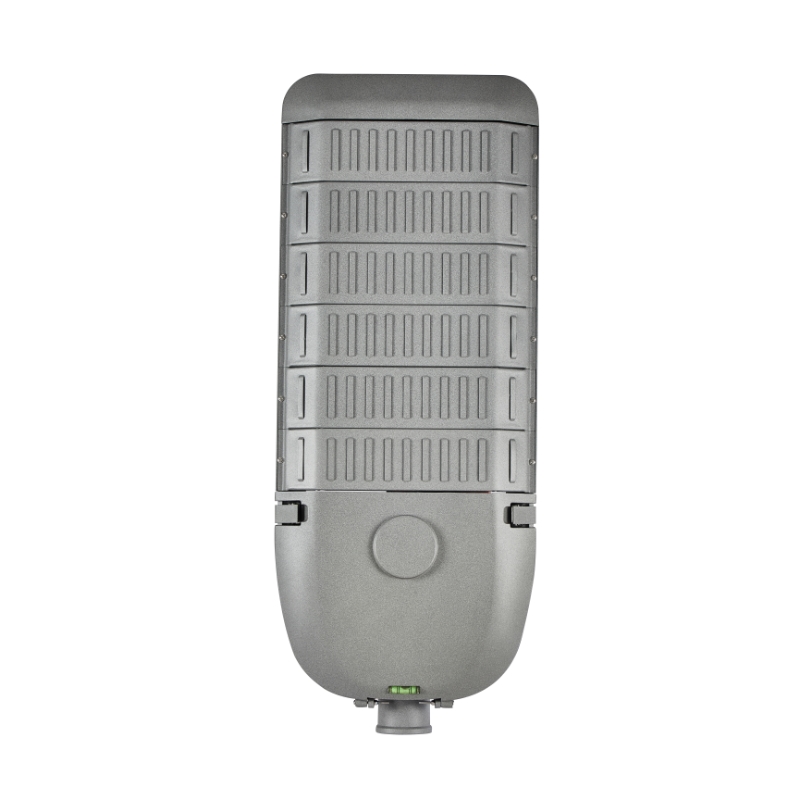

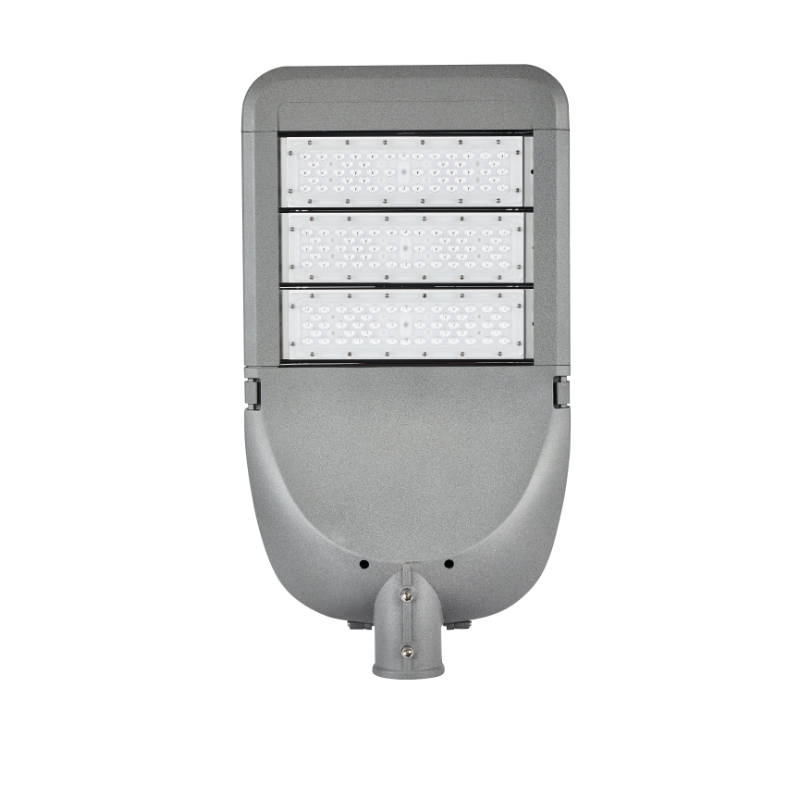

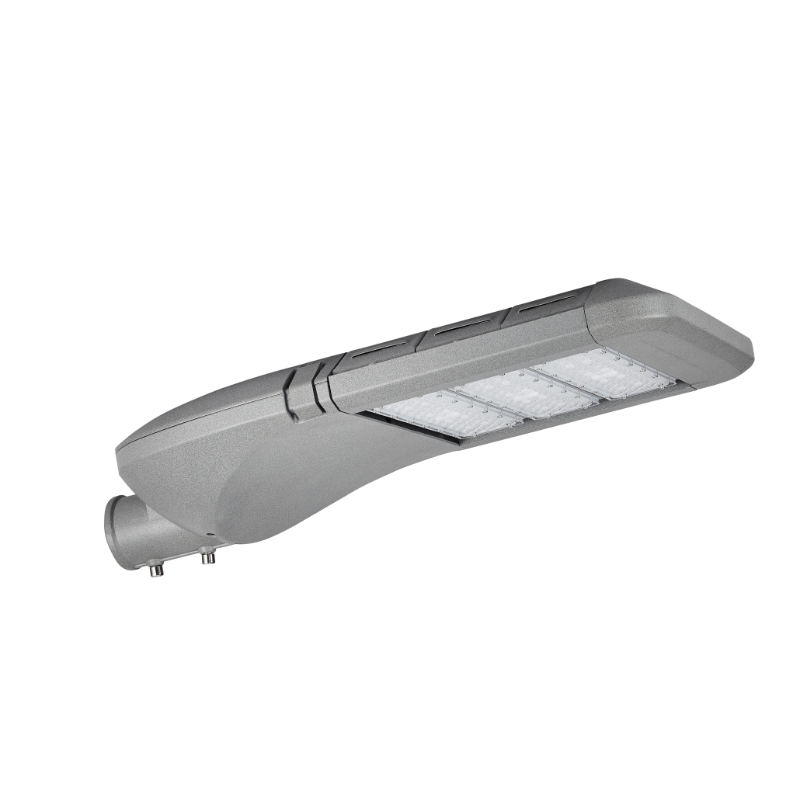

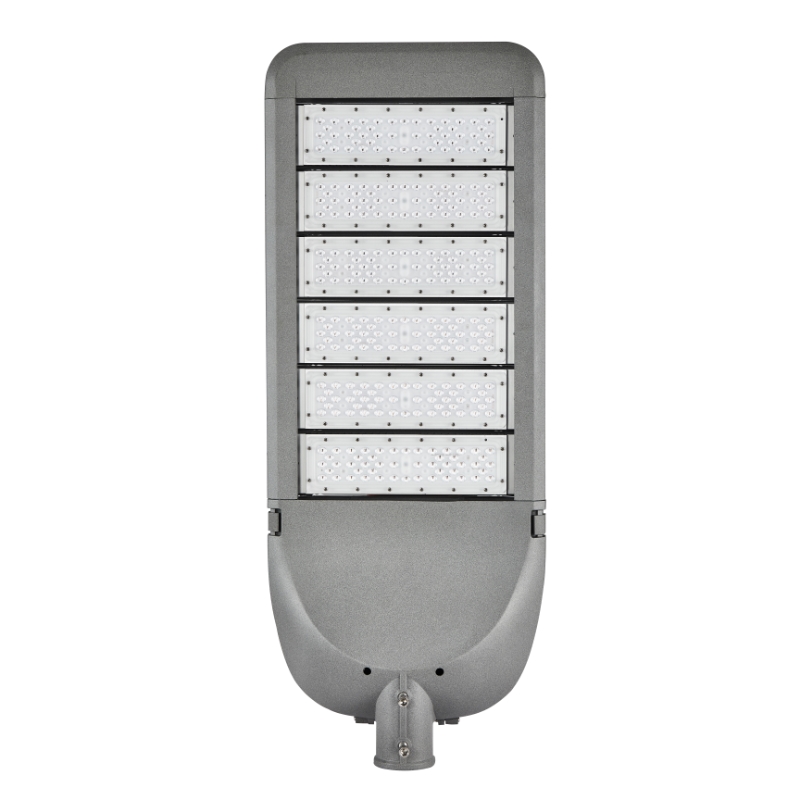

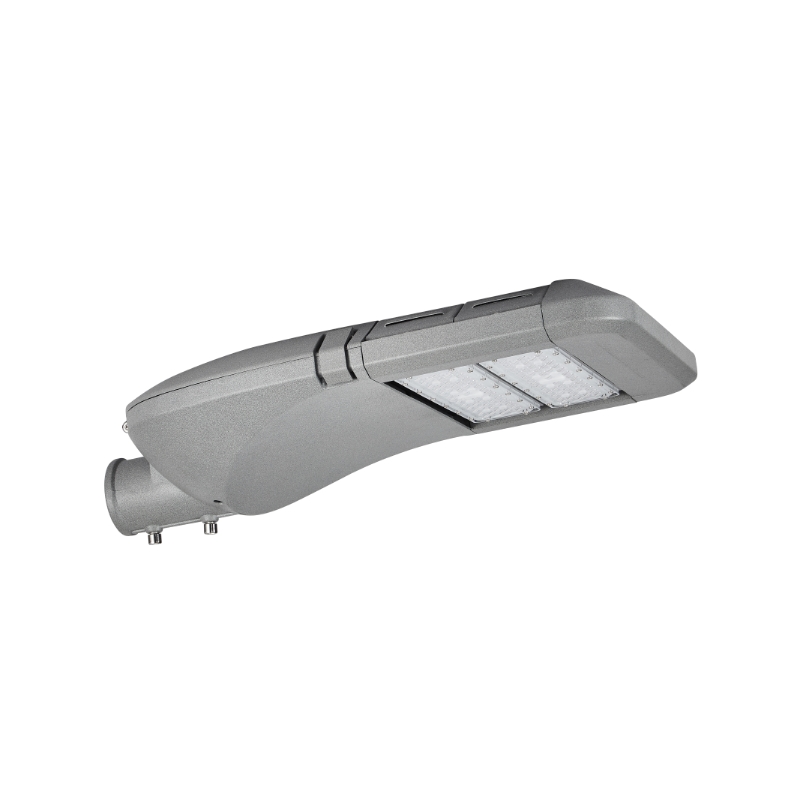

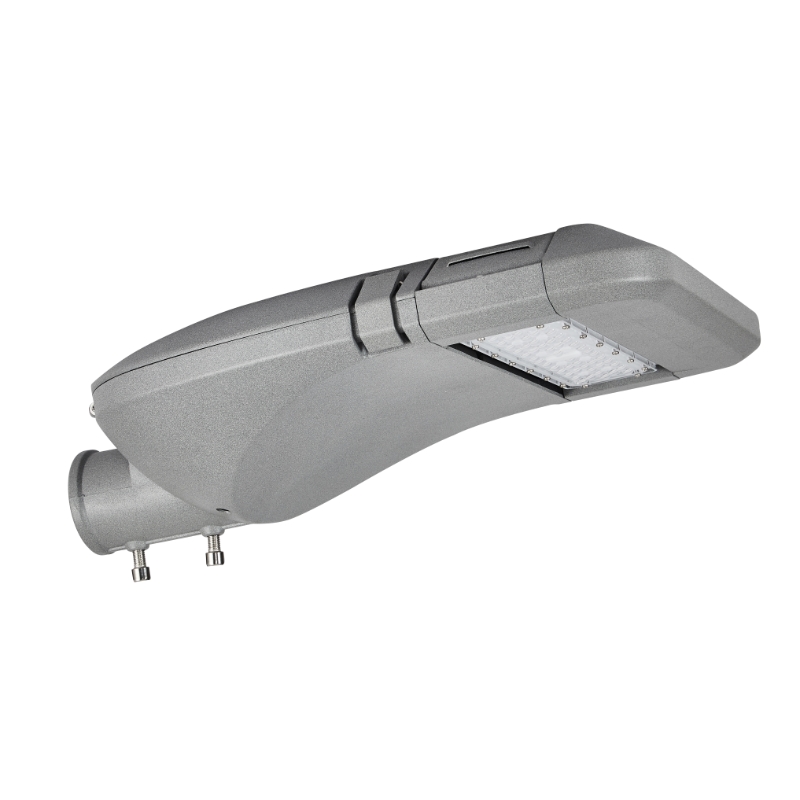

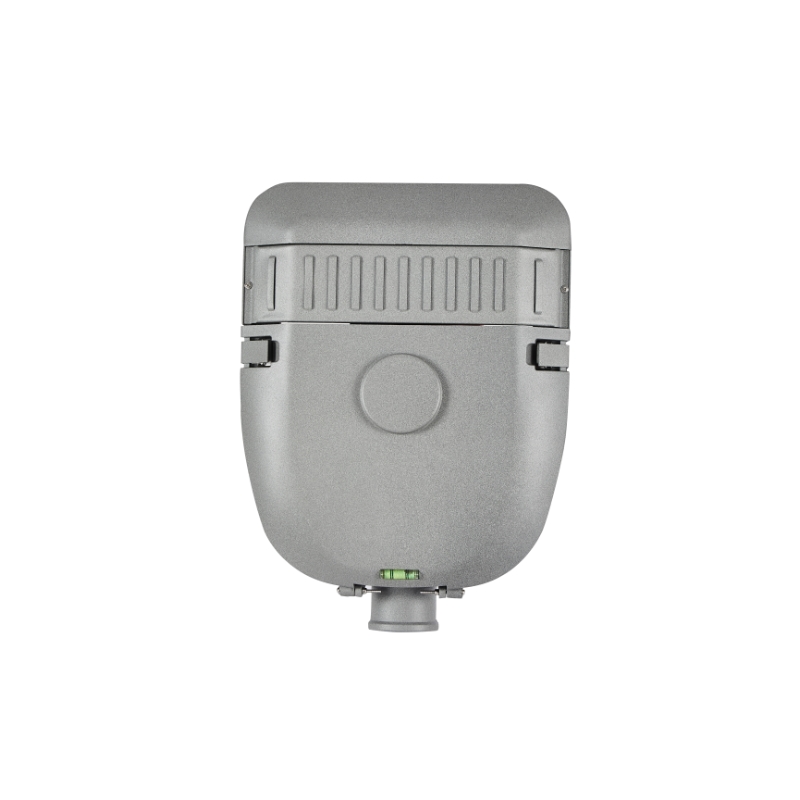

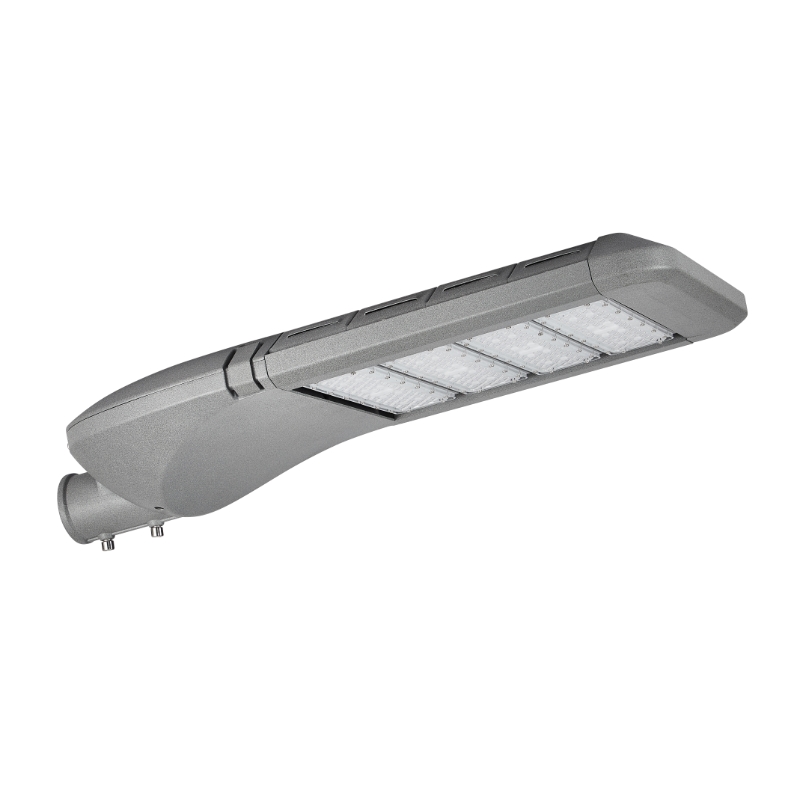

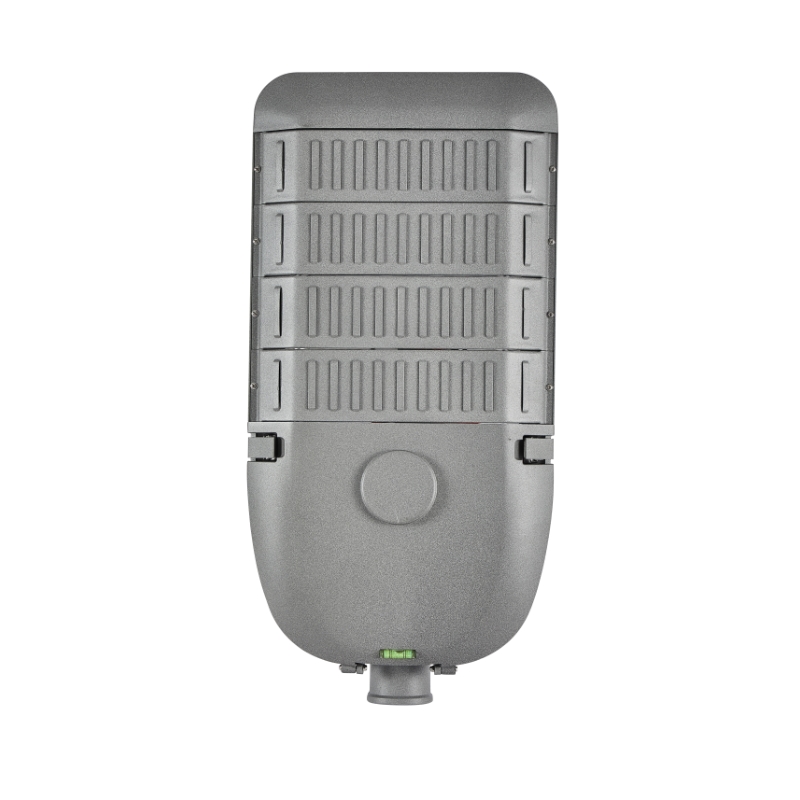

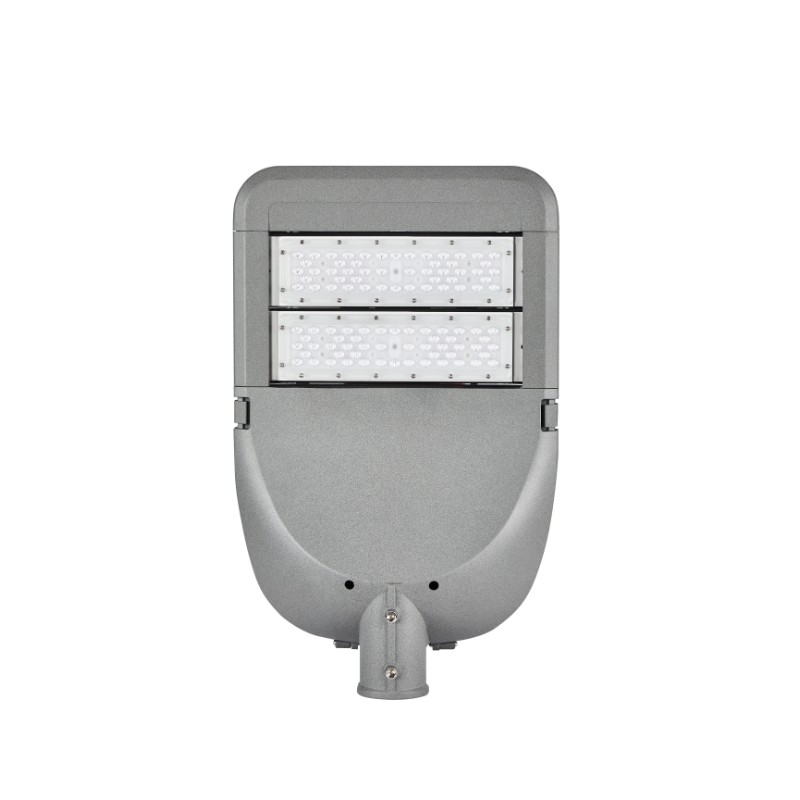

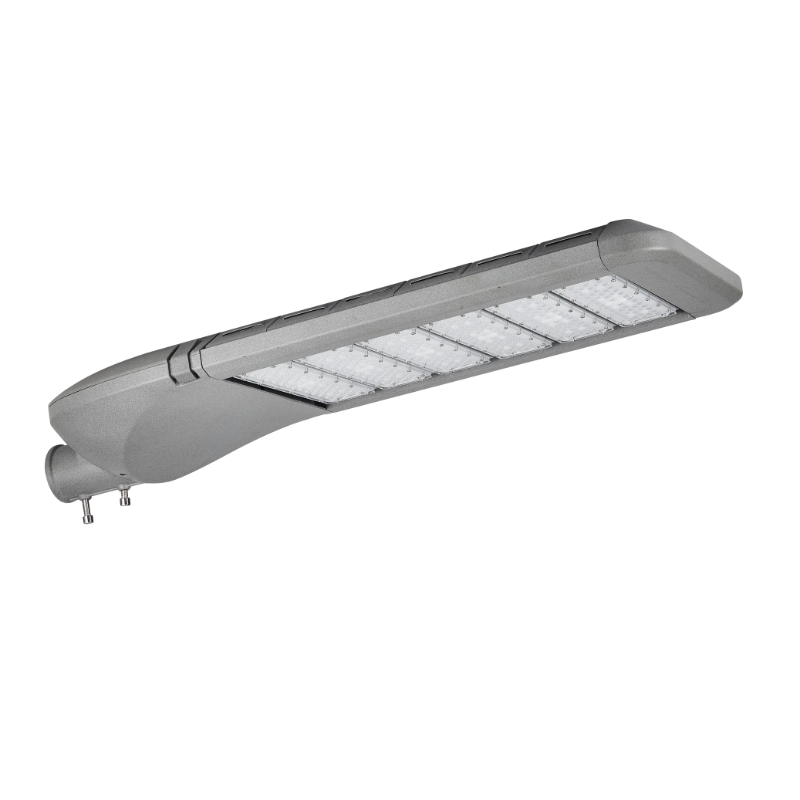

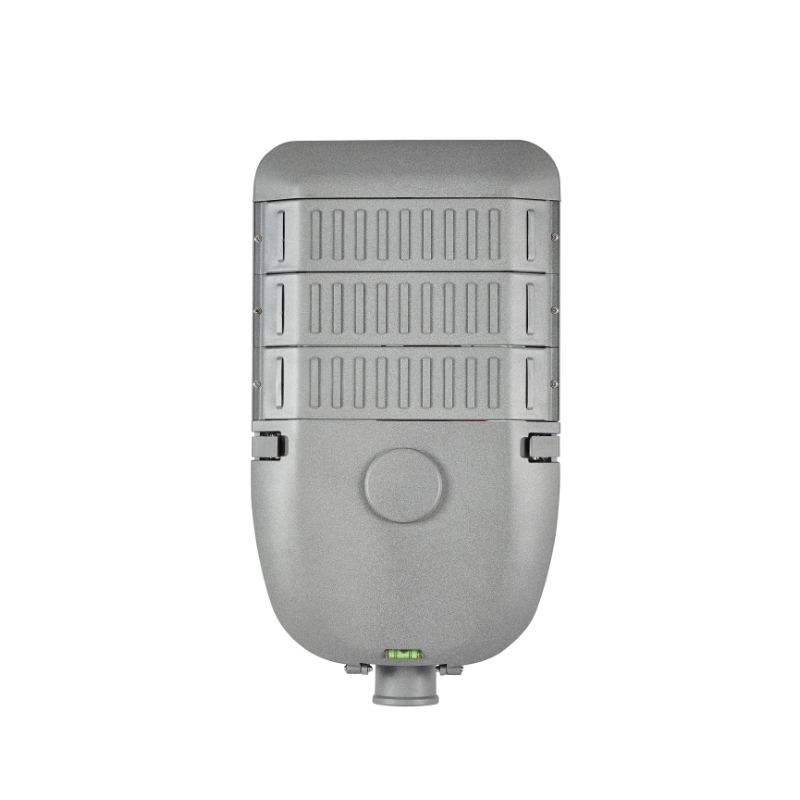

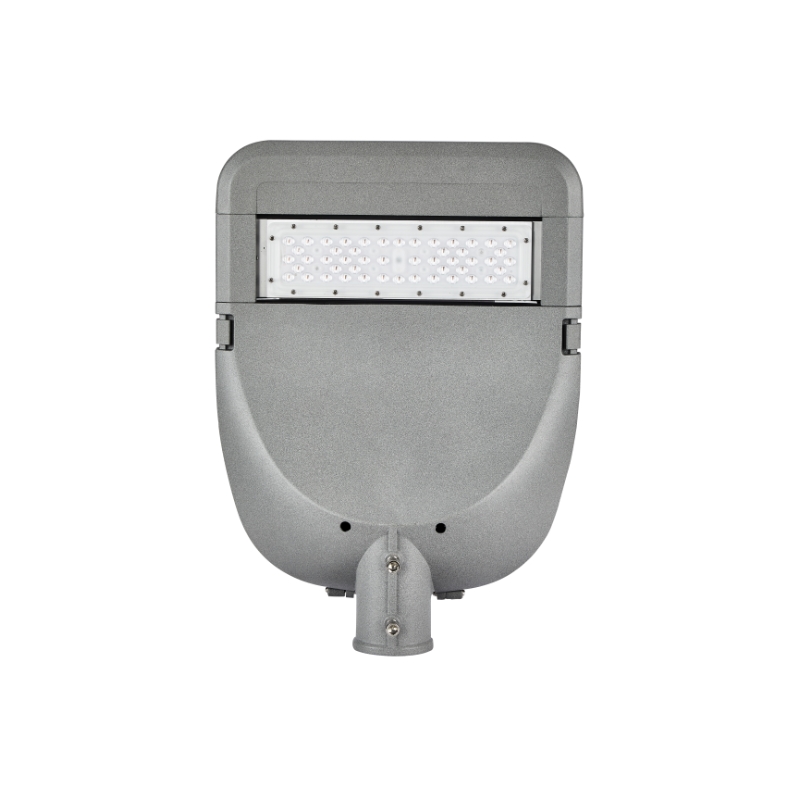

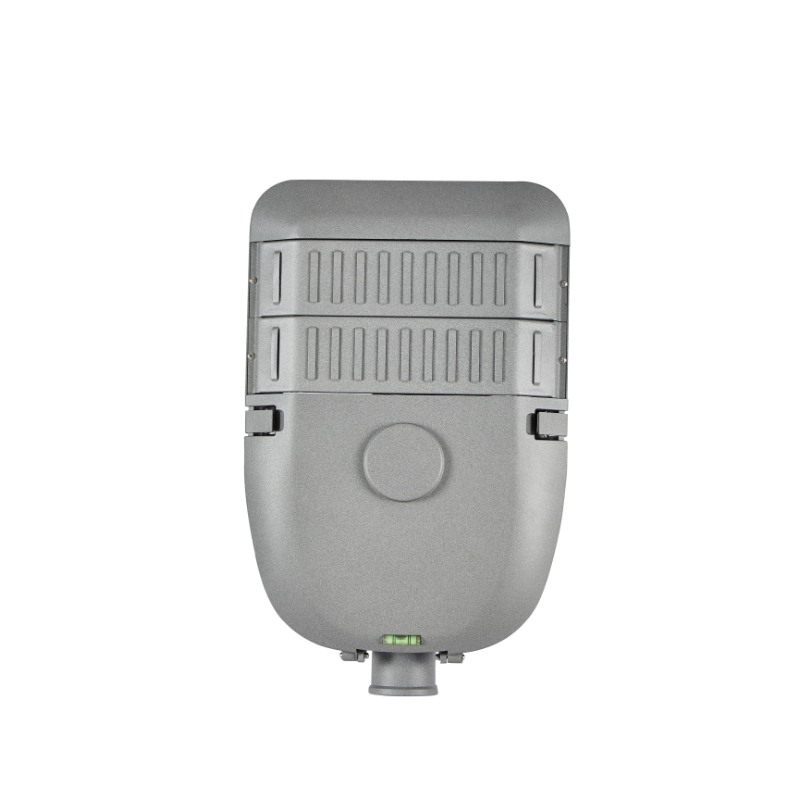

DLD系列 LED 路灯是一款性价比高、采用一体化压铸工艺的专业路灯。其内部电路方案为高压线性恒流 IC 驱动灯板，将灯珠、驱动器和防雷电路集成在铝基板上。产品散热设计采用一体化压铸散热器平式设计，内置散热鳍片，所有器件紧密贴合在散热器上，减小了 LED 灯具的体积，提高了散热效果，既能延缓灯珠衰减，又简化了灯具的装配工艺。
该产品适用于主干道、次干道、支路、居民区及其他需要道路照明的场所。
技术参数表
No. | 参数名称Nameofparameter | 规格型号及参数表（带驱动和无驱动） Specifications Model parameter specifications（with Driver and without Driver） | |||||||||
1 | 型号Type | DLD-50W | DLD-60W | DLD-100W | DLD-120W | DLD-150W | DLD-180W | DLD-200W | DLD-250W | DLD-300W | DLD-360W |
2 | 功率Rated power | 50W | 60W | 100W | 120W | 150W | 180W | 200W | 250W | 300W | 360W |
3 | 电压范围Allowable operating voltage range | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V |
5 | 功率因数 PF Power factor | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 |
6 | 总谐波 Total harmonic distortion | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% |
7 | 电气强度 Electric strength | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V |
8 | 角度Distribution Angle | 65°*155° | 65°*155° | 65°*155° | 65°*155° | 85°*155° | 85°*155° | 85°*155° | 85°*155° | 85°*155° | 85°*155° |
9 | 显色指数CRI(color rendering index)Ra | ≥80/70 | ≥80/70 | ≥80/70 | ≥80/70 | ≥80/70 | ≥80/70 | ≥80/70 | ≥80/70 | ≥80/70 | ≥80/70 |
10 | 色温Color temperatureCCT | 5700±300K | 5700±300K | 5700±300K | 5700±300K | 5700±300K | 5700±300K | 5700±300K | 5700±300K | 5700±300K | 5700±300K |
11 | 光效 Whole light effect(lm) | 110-180lm | 110-180lm | 110-180lm | 110-180lm | 110-180lm | 110-180lm | 110-180lm | 110-180lm | 110-180lm | 110-180lm |
12 | 环境温度Operating ambient temperature | -45°~40° C | -45°~40° C | -45°~40° C | -45°~40° C | -45°~40° C | -45°~40° C | -45°~40° C | -45°~40° C | -45°~40° C | -45°~40° C |
13 | 寿命Life | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs |
14 | 浪涌Lightning and surge protection rating | ≥6K | ≥6K | ≥6K | ≥6KV | ≥6KV | ≥6KV | ≥6KV | ≥6KV | ≥6KV | ≥6KV |
15 | 防护等级IP Grade | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 |
