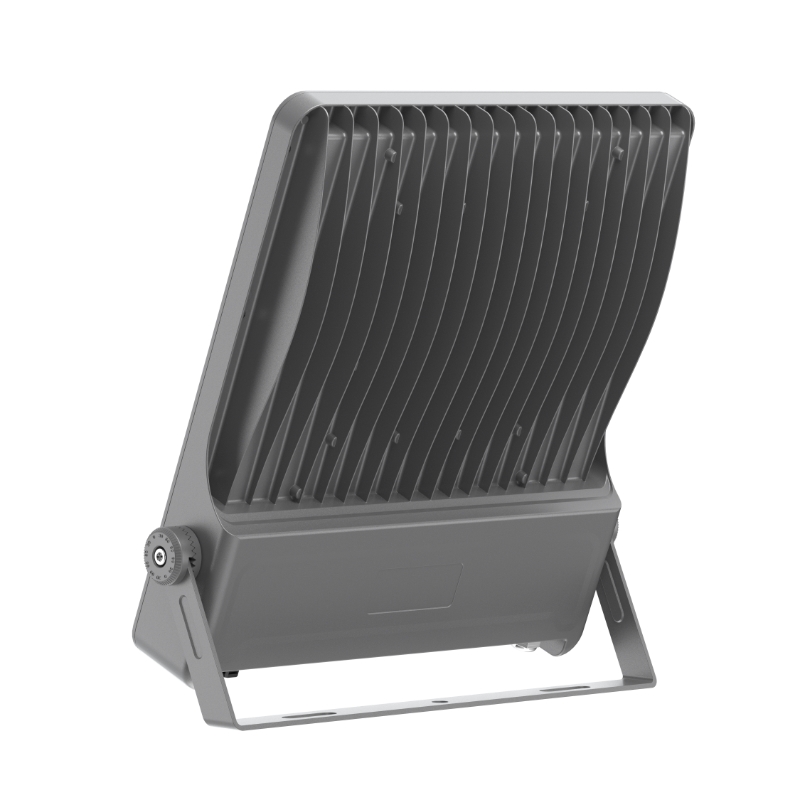

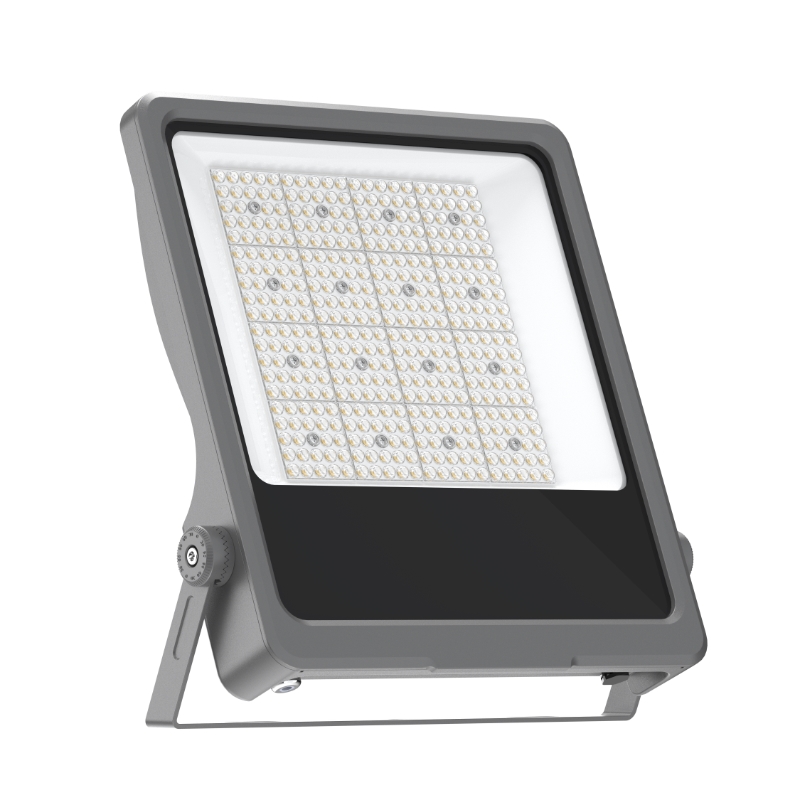

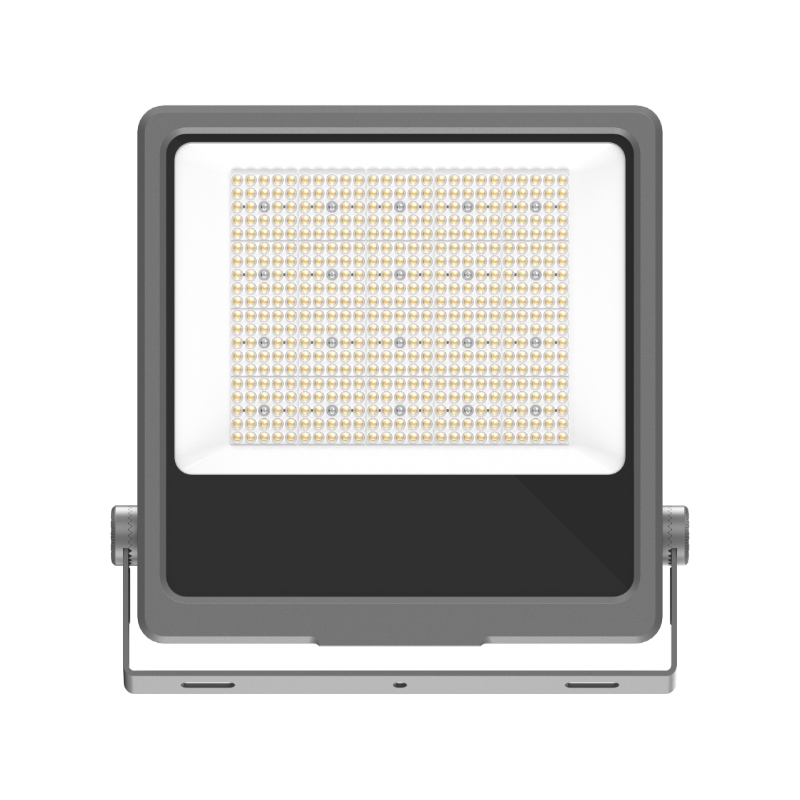

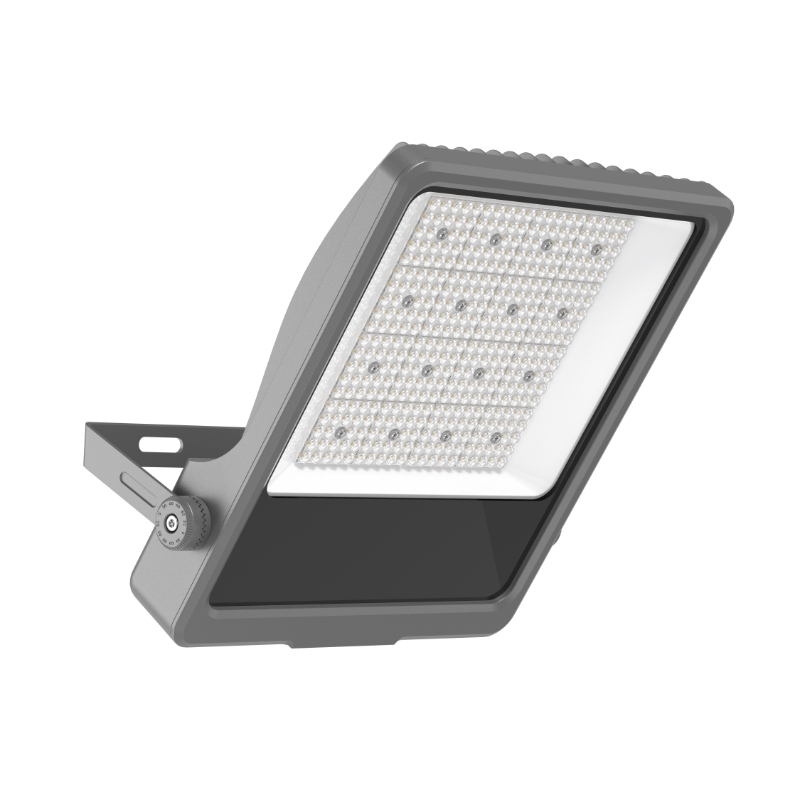

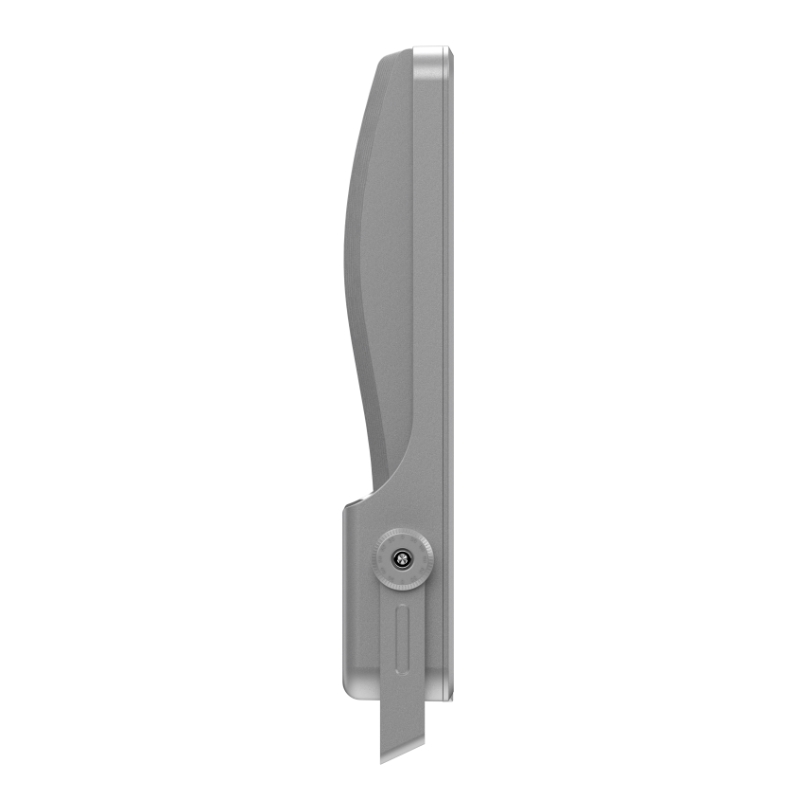

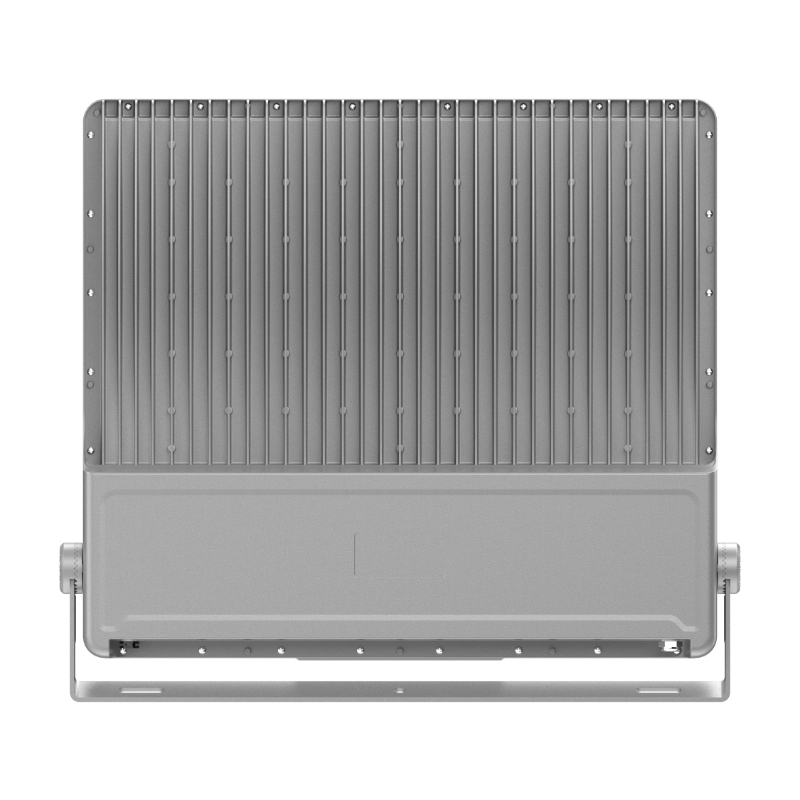

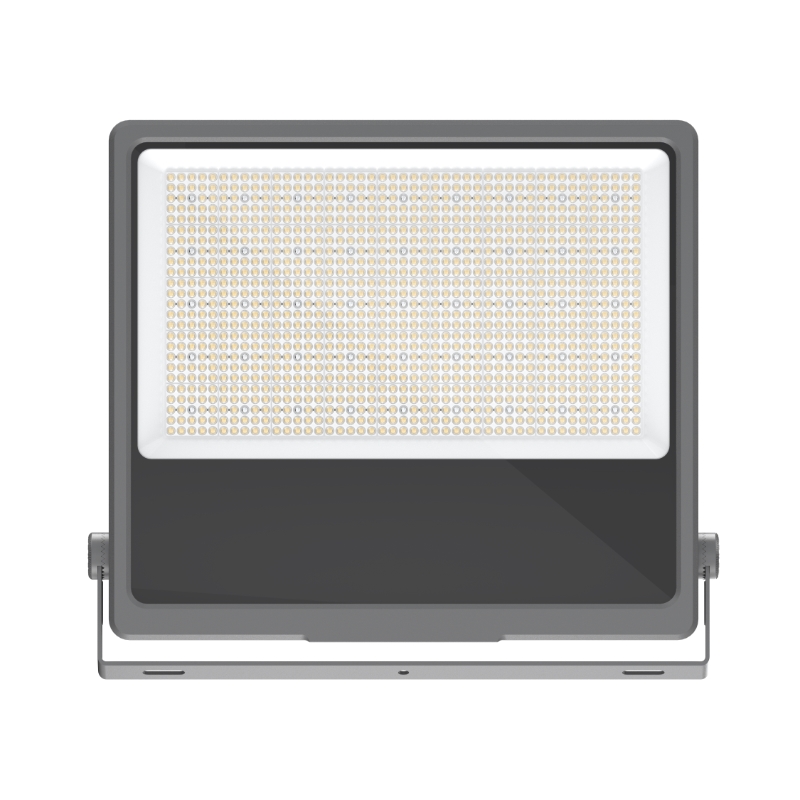

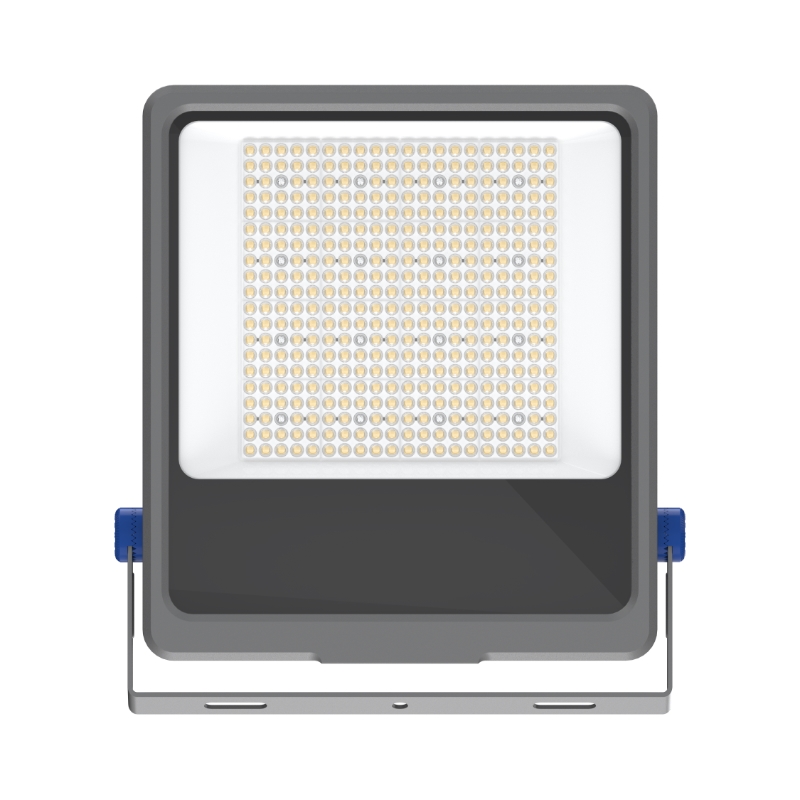

泛光灯具 HYQCA系列
产品介绍
功率范围
RJ-HYQCA-100W-1
HYQCA-200W-2
HYQCA-240W-3
HYQCA-300W-3
HYQCA-400W-4
HYQCA-500W-5
HYQCA-600W-6
产品中心
经典设计出发，提供适合的产品
功率范围
RJ-HYQCA-100W-1
HYQCA-200W-2
HYQCA-240W-3
HYQCA-300W-3
HYQCA-400W-4
HYQCA-500W-5
HYQCA-600W-6
技术参数表
No. | 参数名称Nameofparameter | 规格型号及参数表Specification model and technical data | |||||||
1 | 型号Type | QCA-100W | QCA-200W | QCA-240W | QCA-250W | QCA-300W | QCA-400W | QCA-500W | QCA-600W |
2 | 功率Rated power | 100W | 150W | 200W | 250W | 300W | 400W | 500W | 600W |
3 | 电压范围Allowable operating voltage range | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V |
4 | 功率因数 Power factorPF | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 |
5 | 总谐波 Total harmonic distortion | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% |
6 | 耐压Electric strength | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V |
7 | 角度Distribution Angle | 20°/40°/60°/90° | 20°/40°/60°/90° | 20°/40°/60°/90° | 20°/40°/60°/90° | 20°/40°/60°/90° | 20°/40°/60°/90° | 20°/40°/60°/90° | 20°/40°/60°/90° |
8 | 显色指数CRI(color rendering index)Ra | ≥/70 | ≥/70 | ≥/70 | ≥/70 | ≥/70 | ≥/70 | ≥/70 | ≥/70 |
9 | 色温Color temperatureCCT | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K |
10 | 光效 Whole light effect(lm) | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 |
11 | 环境温度Operating ambient temperature | -20~45° C | -20~45° C | -20~45° C | -20~45° C | -20~45° C | -20~45° C | -20~45° C | -20~45° C |
12 | 寿命Life | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs |
13 | 防雷保护 Lightning and surge protection rating | ≥6K | ≥6KV | ≥6KV | ≥6KV | ≥6KV | ≥6KV | ≥6KV | ≥6KV |
14 | 防护等级IP Grade | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 |
