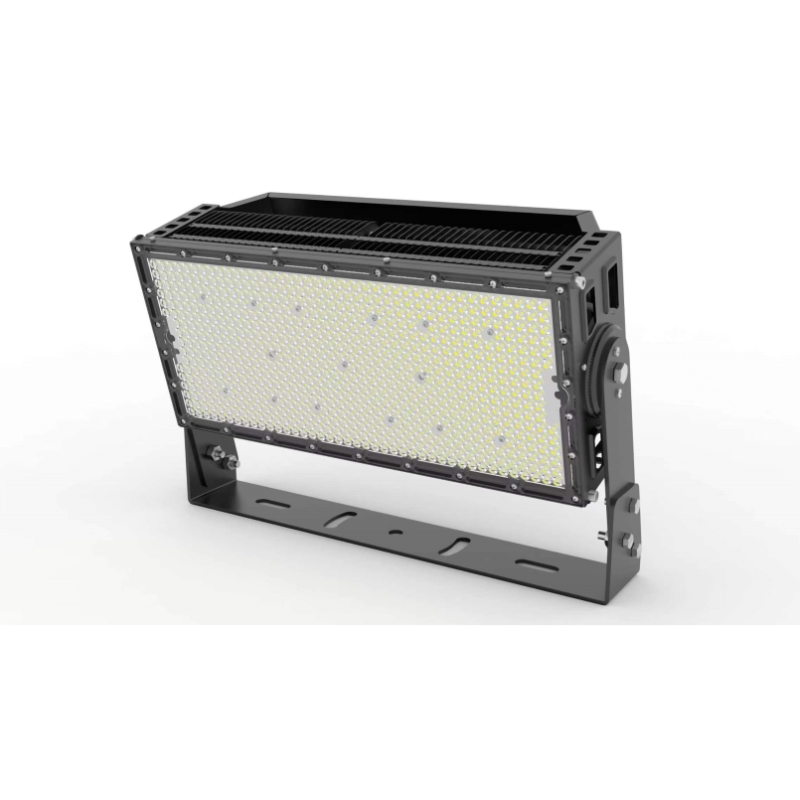

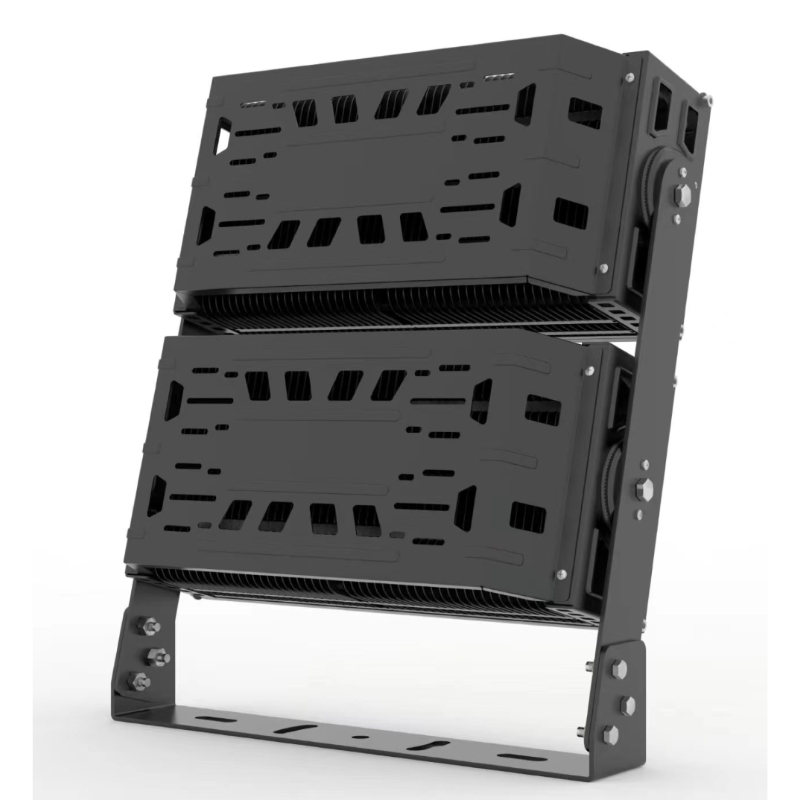

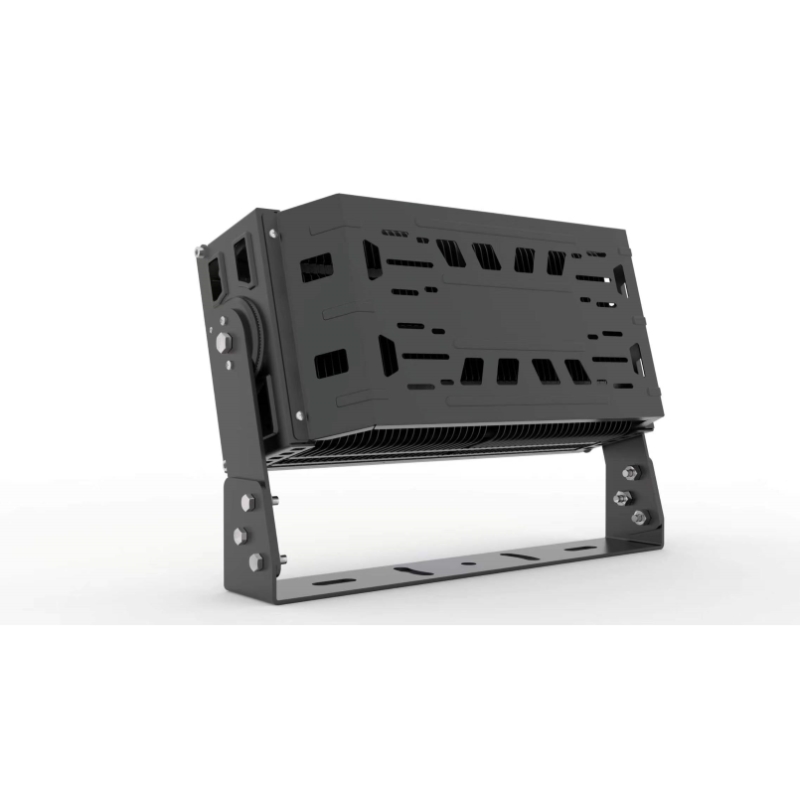

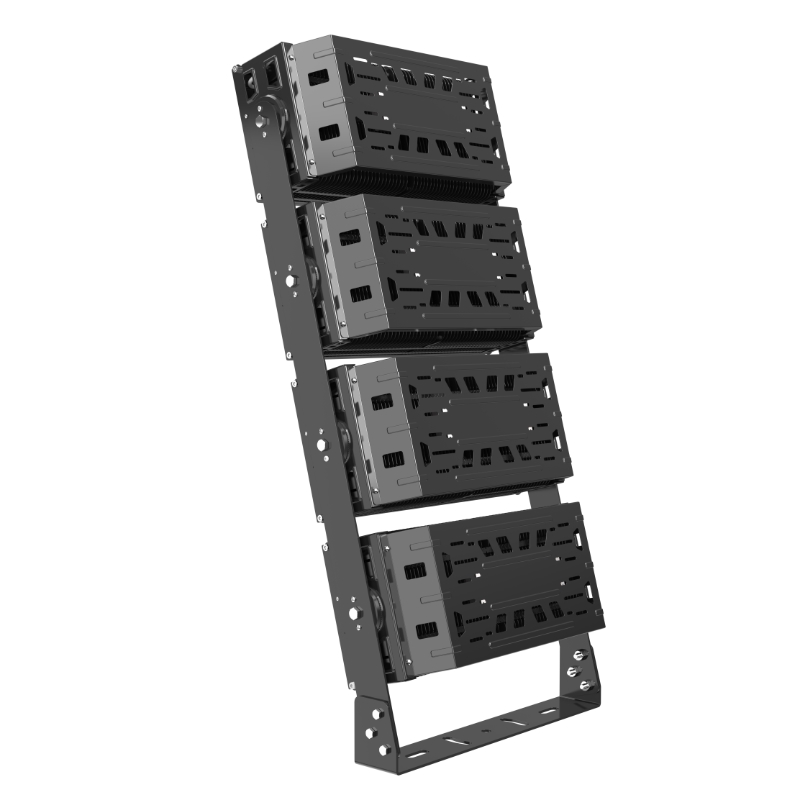

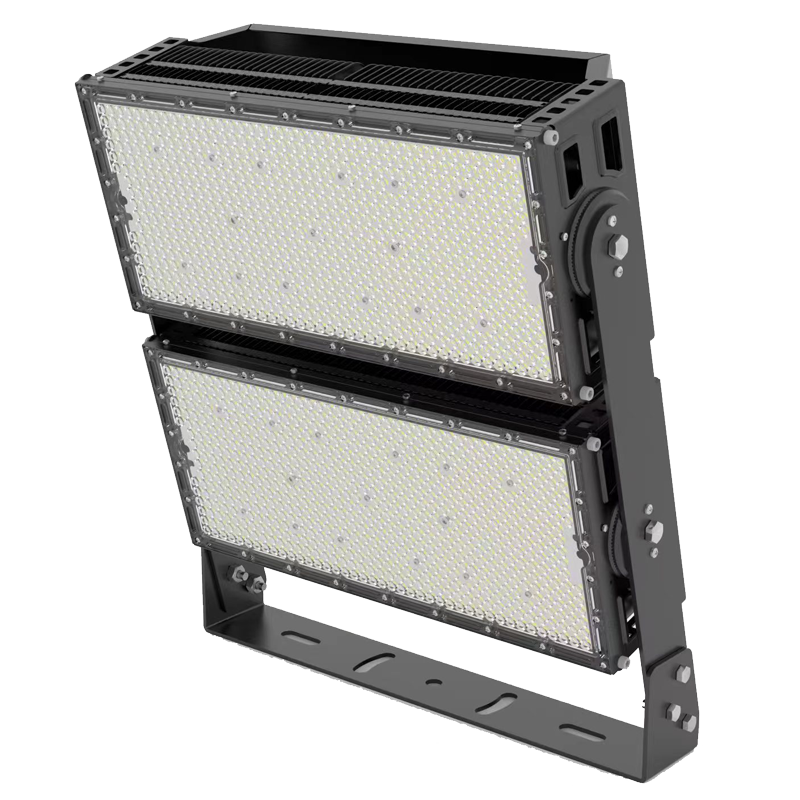

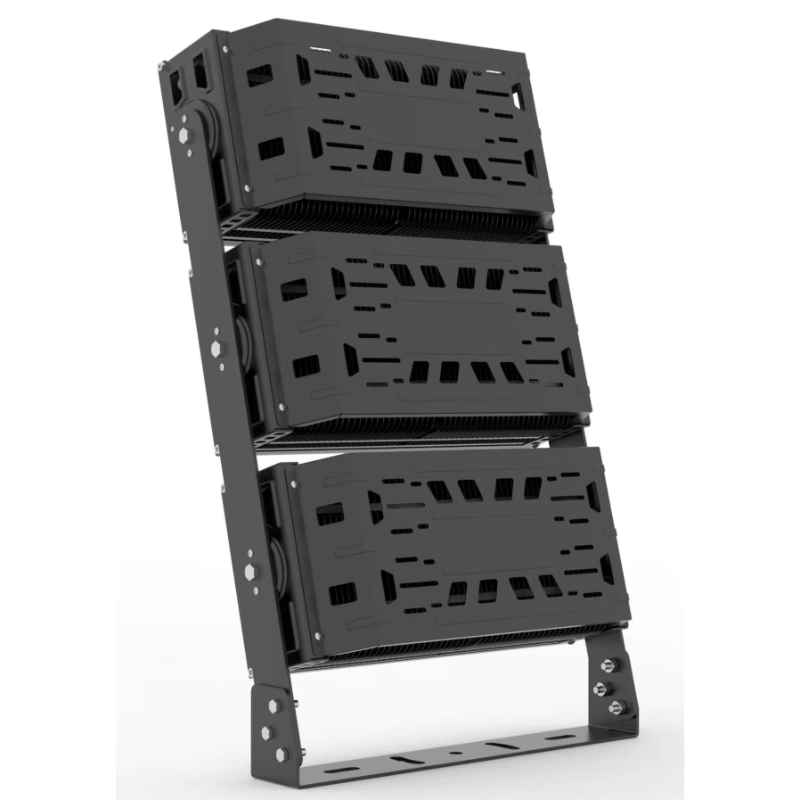

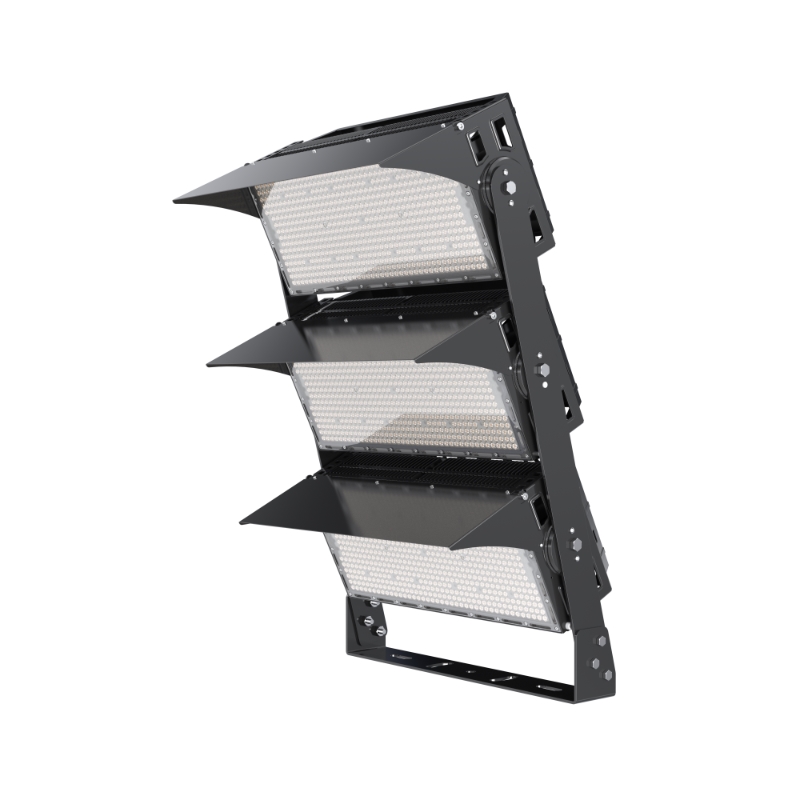

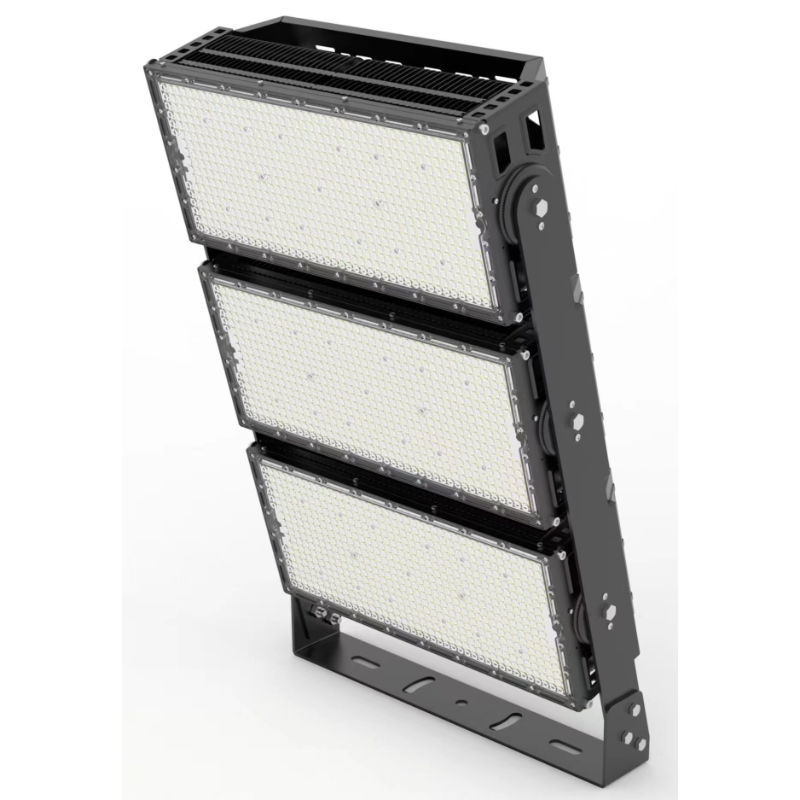

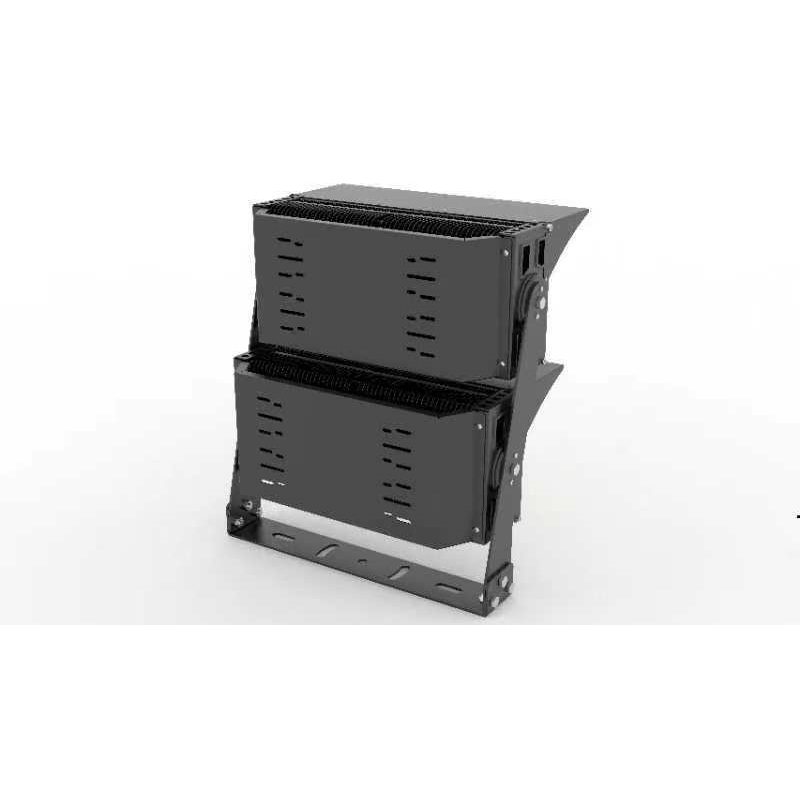

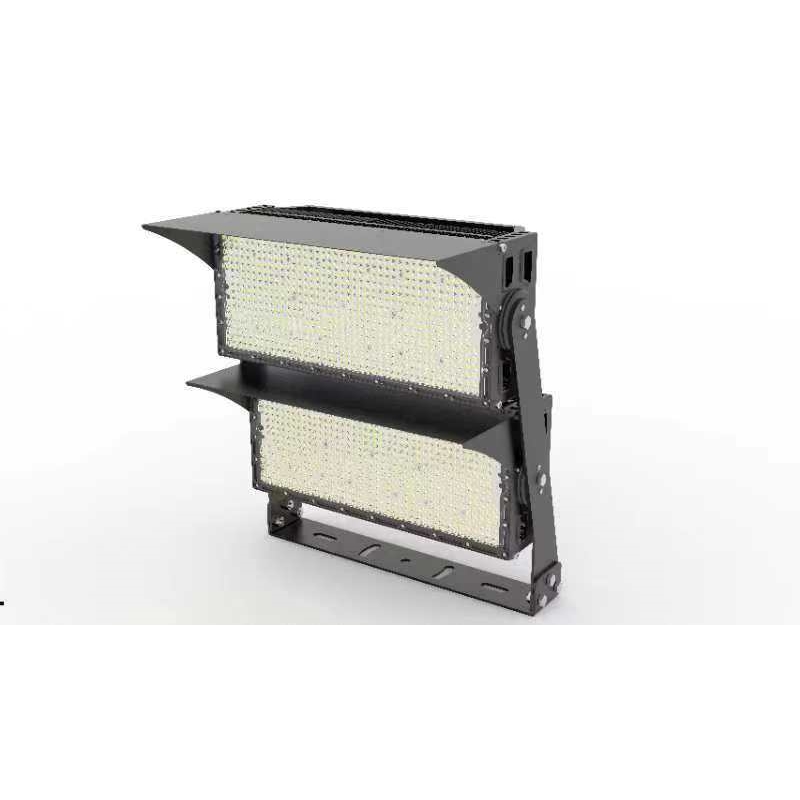

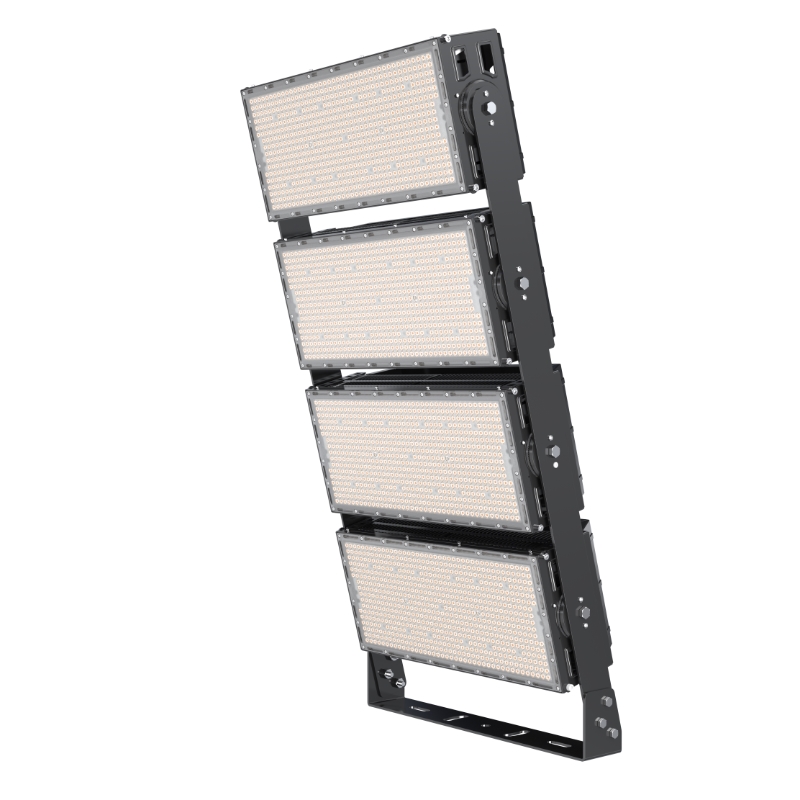

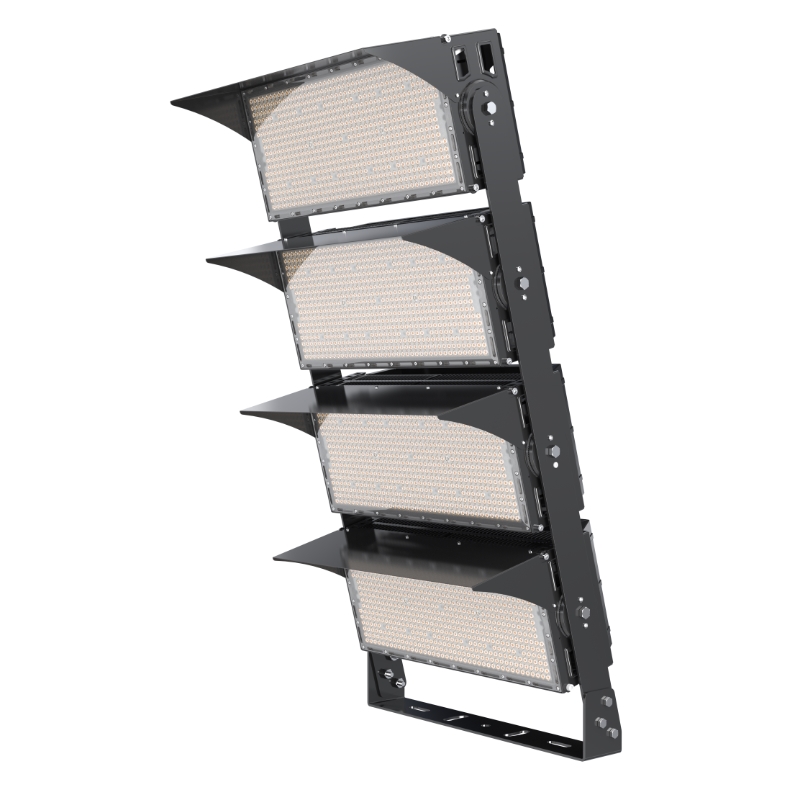

HYQCC Series Floodlight
Product introduction
Power range
RJ-HYQCC-500W-1
HYQCC-1000W-2
HYQCC-1500W-3
HYQCC-2000W-4
Products
From the professional concept-to the religious techniques
Power range
RJ-HYQCC-500W-1
HYQCC-1000W-2
HYQCC-1500W-3
HYQCC-2000W-4
Technical Parameters
No. | 参数名称Nameofparameter | 规格型号及参数表Specification model and technical data | |||
1 | 型号Type | QCC-500W | QCC-1000W | QCC-1500W | QCC-2000W |
2 | 功率Rated power | 500W | 1000W | 1500W | 2000W |
3 | 电压范围Allowable operating voltage range | AC220-240V | AC220-240V | AC220-240V | AC220-240V |
4 | 功率因数 Power factorPF | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 |
5 | 总谐波 Total harmonic distortion | ≤15% | ≤15% | ≤15% | ≤15% |
6 | 耐压Electric strength | 1500V | 1500V | 1500V | 1500V |
7 | 角度Distribution Angle | 20°/40°/60° | 20°/40°/60° | 20°/40°/60° | 20°/40°/60° |
8 | 显色指数CRI(color rendering index)Ra | ≥/70 | ≥/70 | ≥/70 | ≥/70 |
9 | 色温Color temperatureCCT | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K |
10 | 光效 Whole light effect(lm) | 115-160 | 115-160 | 115-160 | 115-160 |
11 | 环境温度Operating ambient temperature | -20~45° C | -20~45° C | -20~45° C | -20~45° C |
12 | 寿命Life | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs |
13 | 防雷保护 Lightning and surge protection rating | ≥6K | ≥6KV | ≥6KV | ≥6KV |
14 | 防护等级IP Grade | IP 65 | IP 65 | IP 65 | IP 65 |
