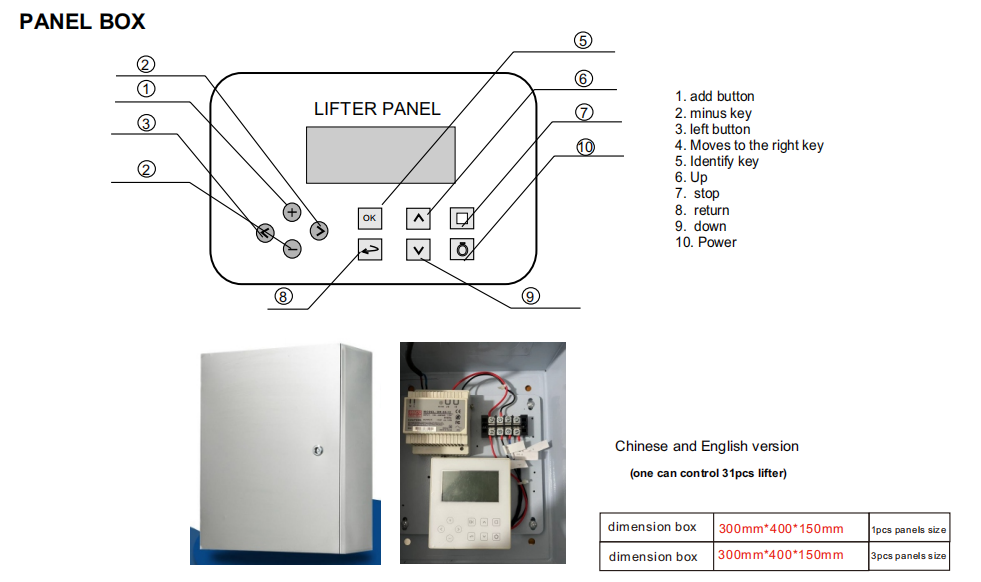

Installation instructions for the control panel:
1) The pre-configured control panel installation cabinet is fixed in the pre-arranged installation position using screws.

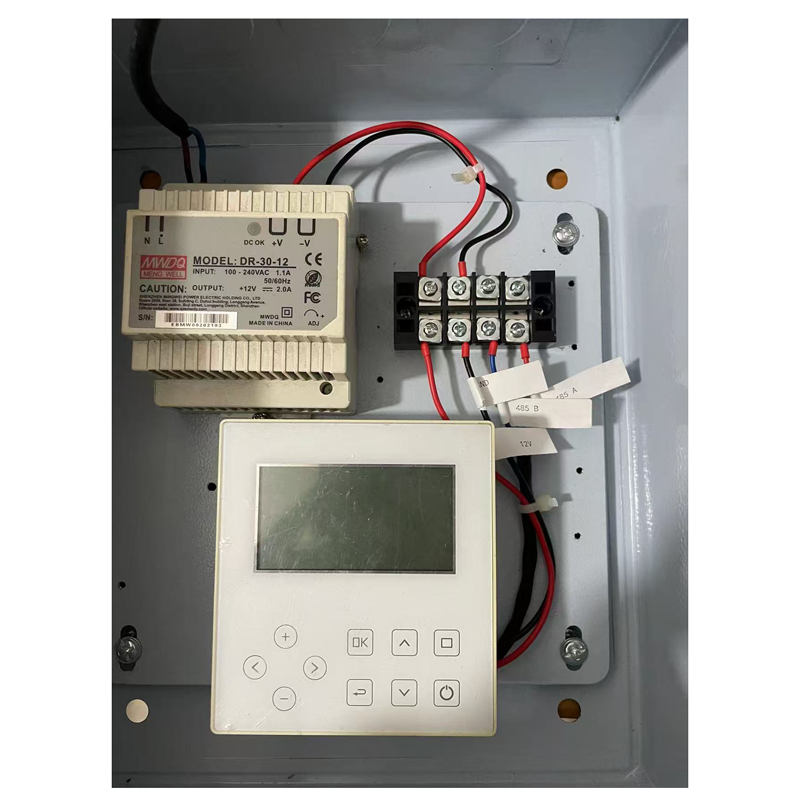

2) Connect the 220V power supply to the installation cabinet and plug in the 12V power adapter (as shown in the figure below).

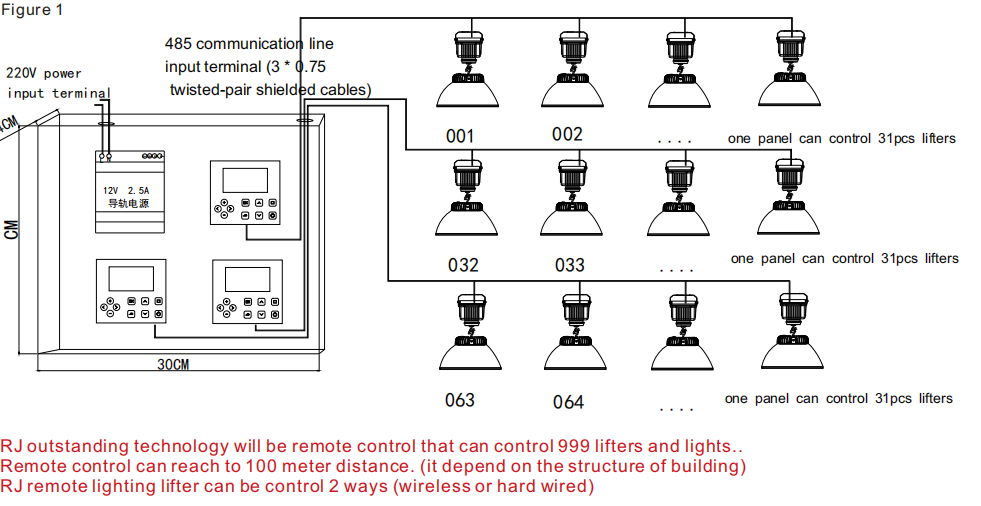

3) Wiring method of the control panel (as shown in the figure below)
4) The actual number of panels installed in the control panel box can be determined based on the on-site layout. Each panel box should not contain more than three panels.
5) A single control panel can control no more than 31 lifters.
6) After installation, the code segment for the control of each panel needs to be marked to facilitate future use.
