G1-G2 Remote control lifter

Product features

• The product volume is small, the quality is light, the structure is reasonable, the safety is reliable, the operation  is convenient, can meet the spatial suspension type luminaire match request which under 25m height.

• The lifter with electrical connectors, when the lamp falls, automatic power, will not pose a safety hazard; When  the lamp is raised to the top, the male and female plugs are automatically energized.

• Each device can set down the trip memory, to prevent accidents.

• Set the abbreviation control code of each lamp according to the lamp layout and circuit to facilitate operation  and memory. (at the time of ordering, please inform the manufacturer first and then deliver the goods with the  serial number)

• Upper travel switch is set in the lifting control system (if lower travel switch is needed, please inform in advance  when ordering);(special requirements) lifting system with reliable self-locking function, motor power,  synchronous start.

Functional description

    1) intelligent lifting control system is composed of controller, remote control and local control panel. The controller is installed inthe lifter. The remote control is portable and manual.

    2) the system has the following functions

UP down stop

    Through the remote control or local control panel  instructions, can achieve the lift up, down, stop and other operations; (if the upper computer function needs  to be added, inform the manufacturer in advance when ordering)

Trip memory function

    The lifting controller can set the stop position of the last descending process recorded. At this time, the point of  the storage key can save the position. When the next running time is pressed, the device will drop to the memory  position and stop automatically.

 Coding function

    It has the function of encoding and modifying the lifter;

485 communication

    The controller has 485 communication interface, which can realize the seamless connection with the upper  computer Now through the upper computer command control lifter. (for customers who need to use PC control,  please inform our company in advance when purchasing)

Applications

    It is applied to various places of business and industry, such as factory, workshop, warehouse, stadium, exhibition center, station, supermarket and so on. Especially be suitable for where it is difficult for construction, or maintenance is  not convenient, or some job is dangerous situations.

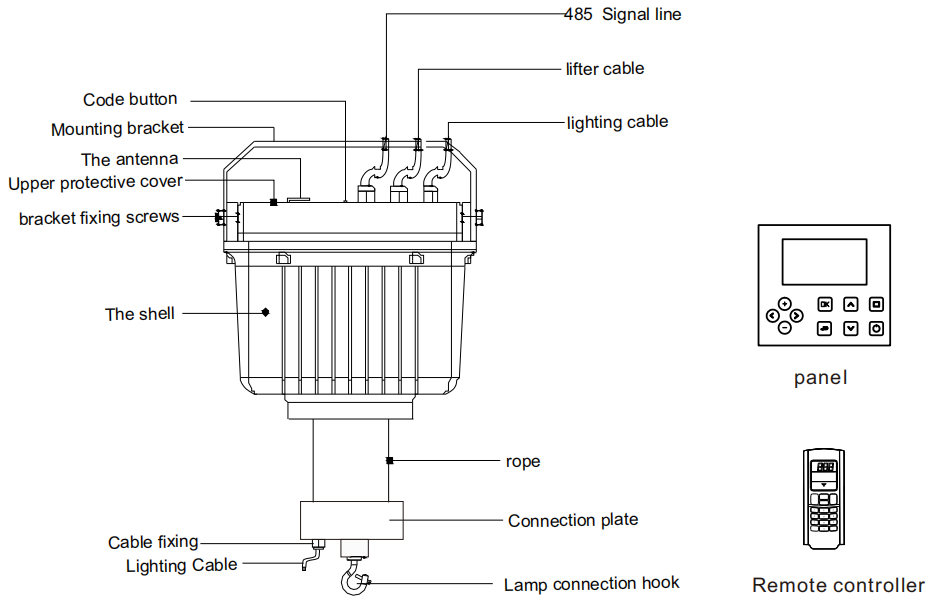

Product structure drawing

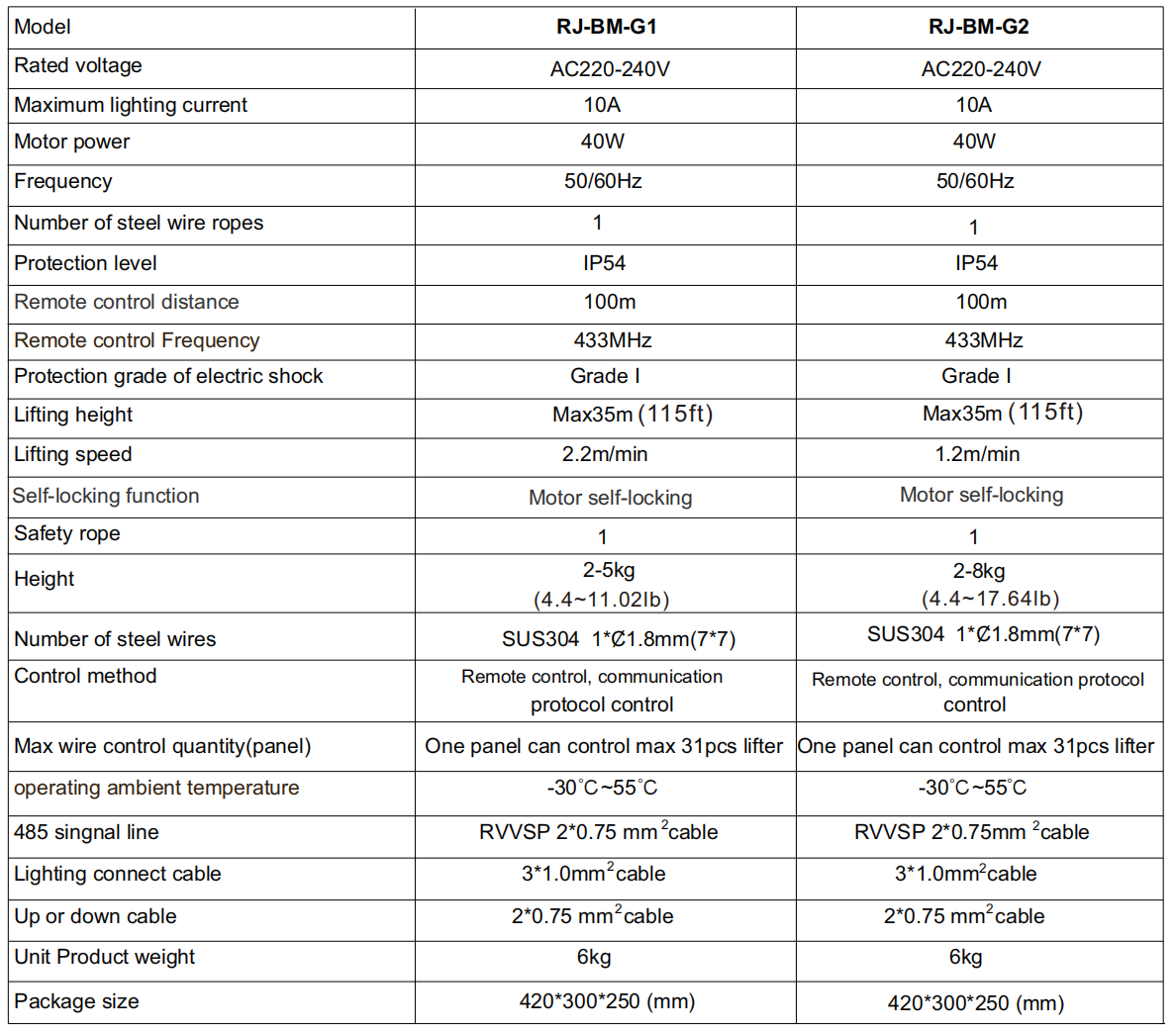

Technical data
